Lintel Beam Explained: Types, Benefits, and Its Importance

Updated on : 13 March 2025

By Hexadecimal Software Team

Image Source: Google.com

1. Overview
2. Lintel beam Purpose
3. Lintel Beam Size
4. Lintel Beam Shape and types
5. Concrete lintel beam
6. Wooden lintel beam
7. Stone lintel beams
8. Steel lintel beams
9. FAQs

1. Overview
2. Lintel beam Purpose
3. Lintel Beam Size
4. Lintel Beam Shape and types
5. Concrete lintel beam
6. Wooden lintel beam
7. Stone lintel beams
8. Steel lintel beams
9. FAQs

Overview

Lintel beams play a vital role in construction by offering support above wall openings like doors and windows. They prevent cracks, ensure load distribution, and enhance structural stability. Available in various materials such as concrete, steel, and wood, lintel beams are key to durable and safe building designs.

Image Source: google.com

Lintel beam Purpose

Purpose	Description
Structural Support	Supports walls above doors, windows, or other openings.
Load Distribution	Divides the load to the side walls, protecting doors and windows.
Decorative Element	Enhances the visual appeal of the structural design.

Lintel Beam Size

Aspect	Details
📏 Width	Matches the depth/thickness of the opening (typically between l/12 to l/8 of the span).
📐 Minimum Width	80 to 100 mm (3 to 4 inches) for stability and support.
📋 Standard Depth	Ranges from 100 mm to 200 mm, depending on the wall load.
🔨 Reinforcement	Steel reinforcement is added for strength and durability.

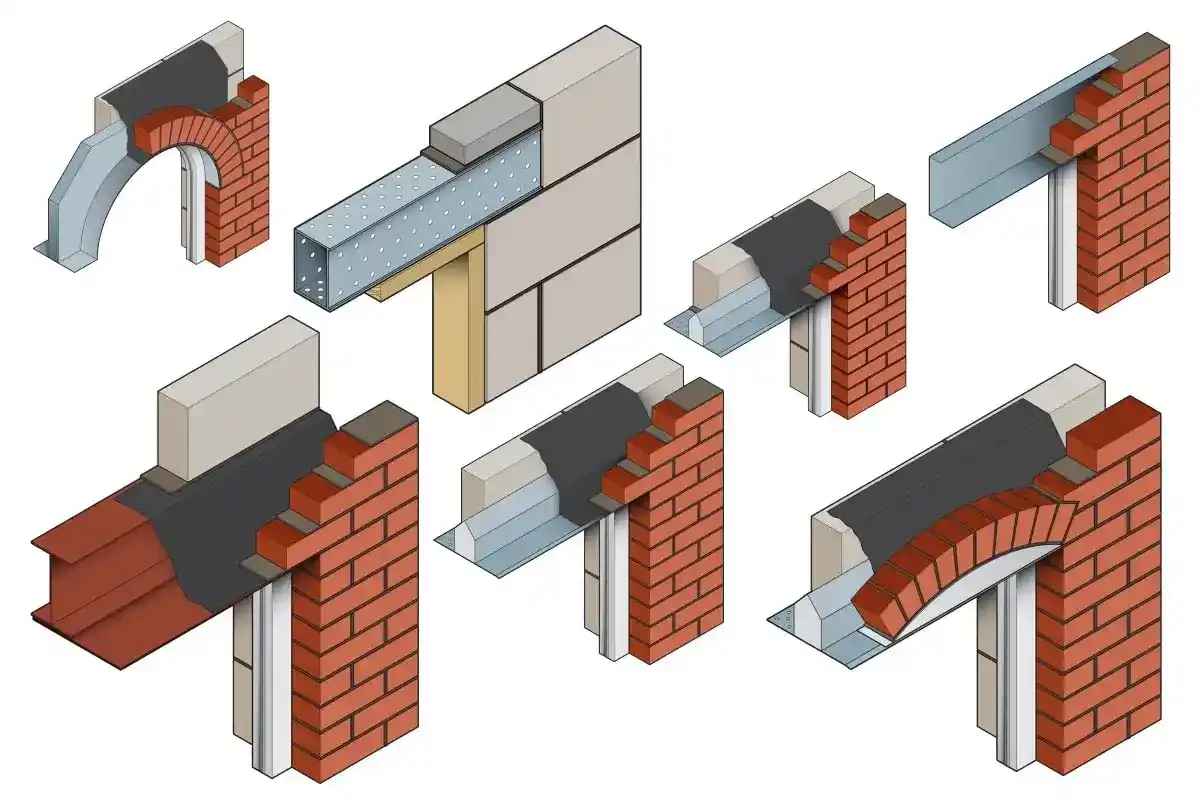

Lintel Beam Shape and types

Lintel beams are usually rectangular and made from concrete, steel, stone, or timber. Timber is affordable, concrete is strong and durable, while steel is lightweight and versatile, ideal for custom designs.

Material	Shape	Key Features
Concrete	Rectangular	Durable, economical, and ideal for strong structures.
Timber	Rectangular	Affordable and widely available; less durable.
Stone	Rectangular	Heavy but strong; often used in traditional designs.
Steel	Customizable	Lightweight, versatile, and easy to handle.

Image Source: google.com

Concrete lintel beam

Concrete lintel beams are widely used in construction for their strength, durability, and fire resistance. They are easy to create, economical, and adaptable to various sizes and shapes. For heavier loads, they are reinforced with steel bars for added support.

Feature	Details
🧱 Common Use	Ideal for most construction projects due to durability.
📏 Average Span	Typically 800mm for standard buildings.
📐 Thickness	Around 8cm for heavy load-bearing structures.
🔩 Reinforcement	Main bars at the bottom; ends bent for tensile stress control.

🔗Explore : Properties in Delhi (BUY)

Wooden lintel beam

Wooden lintel beams, commonly used in mountainous regions, are less durable, costly, and not fire-resistant. They are built by joining multiple wooden pieces with steel bolts for added strength.

Feature	Details
🌲 Common Use	Used in hilly areas where timber is abundant.
💰 Cost	Expensive and less durable than concrete or steel.
🔥 Fire Resistance	Not fire-proof, making it less safe.
🔩 Construction	Made by joining wooden pieces with steel bolts and packing pieces.

Stone lintel beams

Stone lintel beams, used in hilly areas, are heavy with low tensile strength, making them unsuitable for vibratory loads. They come in single or multi-piece designs with a minimum thickness of 8 cm.

Feature	Details
🪨 Common Use	Ideal for hilly areas where stone is available.
📏 Thickness	Minimum 8 cm or 4 cm for every 30 cm span.
⚠️ Limitations	Low tensile strength; unsuitable for vibratory loads.
🚚 Transport	Heavy and challenging to carry or install.

🏡 Don't miss out! Find your ideal property on HexaHome! 🔥

Steel lintel beams

Steel lintel beams are ideal for large openings and heavy loads. Made from steel joists or channels, they are durable, rust-resistant, and easy to install.

Feature	Details
🏗️ Ideal Use	Suitable for large openings and heavy loads.
🔩 Construction	Made from rolled steel joists or channel sections.
🛡️ Protection	Requires rust-resistant paint for durability.
🛠️ Installation	Easy to install with minimal labor requirements.
